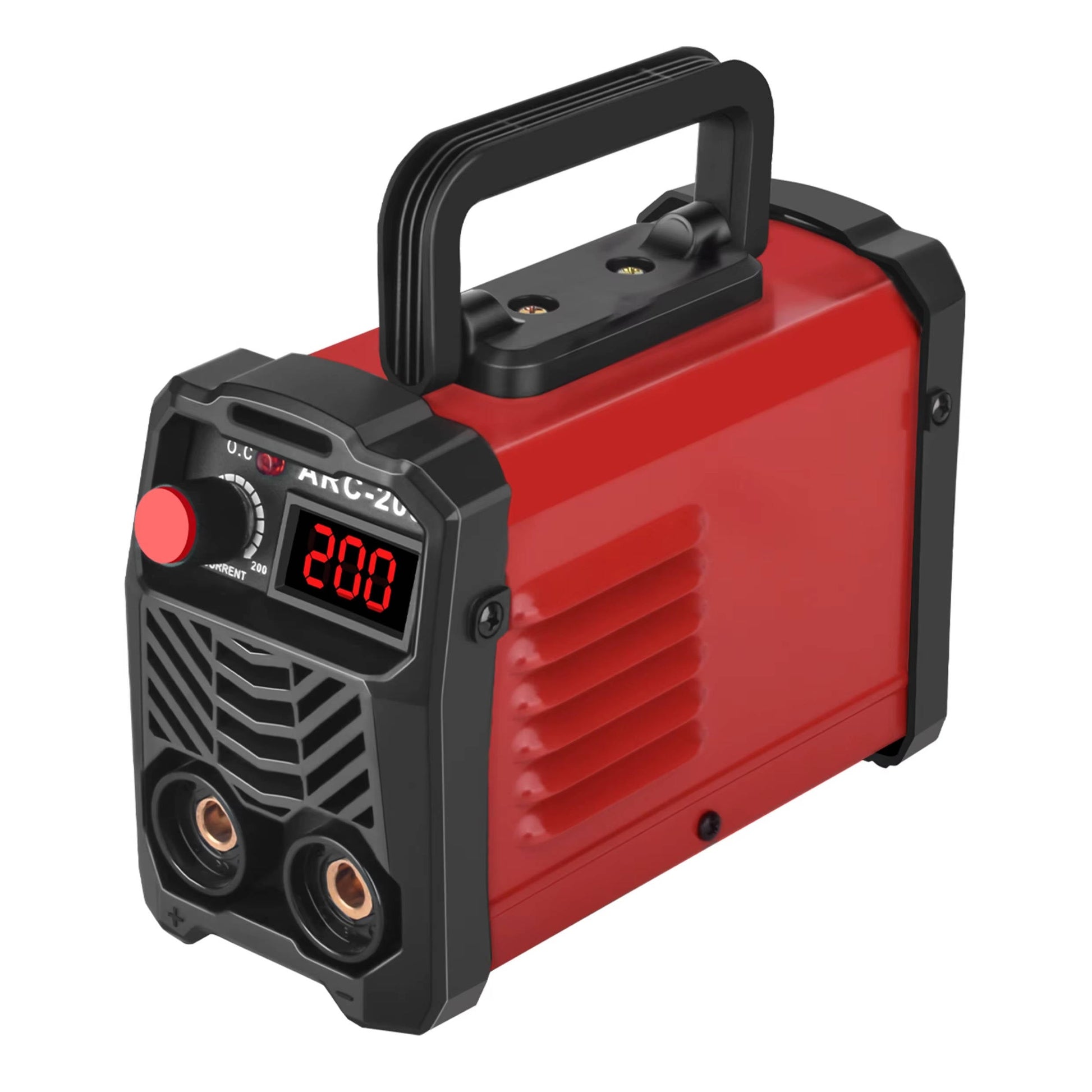

Mini Portable Stick Welder, 110/220V MMA Arc Welding Machine with LED Digital Display and Smart Voltage Conversion

Stick Welder for Metal Repair and Fabrication Projects

You can perform metal repair and fabrication projects wherever the equipment is available. Handle fence repairs, trailer maintenance, and workshop projects with a portable welding machine. The compact design makes it easier to move between job locations.

The machine switches between 110V and 220V automatically when plugged in. Set your current from 20A to 200A on the digital display, clamp your ground, strike an arc with 1/16 to 1/8 inch electrodes. Hot start adds ignition power while arc force keeps welds stable throughout.

It works on mild steel, stainless, cast iron, and carbon steel from 0.06 to 0.2 inches thick for different repair jobs. Metal housing protects components from drops and weather while weighing just 3.7 pounds total. LED display shows amperage settings in bright sun or dim garages.

Copper connections are designed for durability while built in monitoring systems assist with operation. The cooling fan supports airflow through the unit during use. Additional welding features are included to assist with electrode operation.

• HOT START TECHNOLOGY: Includes a hot start function designed to assist arc initiation.
• ARC FORCE AND ANTI STICK: Includes arc force and anti stick welding features.
• HIGH POWER FAN COOLING: Cooling fan supports airflow through the unit during operation.
• MULTI PROTECTION SYSTEM: Includes built in monitoring features for voltage, current, temperature, and load conditions.



PORTABLE STICK WELDER SPECS

• Input Voltage: 110V/220V Auto Switching


• Current Range: 20A to 200A Adjustable


• Maximum Output: 200A


• Electrode Range: 1/16 to 1/8 inch


• Metal Thickness: 0.06 to 0.2 inches


• Weight: 3.7 lbs


• Display Type: LED Digital


• Technology: IGBT Inverter


• Compatible Rods: E6010, E6011, E6013, E308


• Recommended Rod: E6013


• Metal Compatibility: Mild Steel, Stainless, Cast Iron, Carbon Steel


• Housing Material: Metal


• Interface: All Copper


• Handle: Non slip Grip


• Protection Rating: IP21 Standard


• Safety Features: Built In Monitoring Functions


• Cooling System: High Power Fan


• Additional Features: Hot Start, Arc Force, Anti Stick

PACKAGE INCLUDES:

• 1 x Stick Welder


• 1 x Electrode Holder


• 1 x Power Cable


• 1 x User Manual
