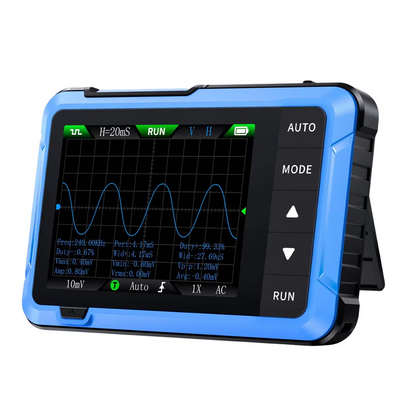

Portable Digital Oscilloscope for Circuits

Compact Testing Power

This portable digital oscilloscope provides testing for circuits in a compact, easy to carry design. With instant AUTO setup and a clear LCD display, it helps capture signals quickly without delays.

Standard and Pro Models

Choose from two versions depending on your needs. The Standard model supports everyday diagnostics, while the Pro version delivers higher sampling rates and bandwidth for advanced testing.

Reliable and Versatile

Both versions include a built-in signal generator, safe voltage measurement up to ±400 V, and a rechargeable battery for up to 4 hours of continuous operation.

Key Features

• Precision Voltage Measurement: Supports ±400 V range with circuit protection.
• Real-Time Sampling Rate: 5 MS/s (Standard) or 48 MS/s (Pro) for accurate signal capture.
• Bandwidth Range: 1 MHz (Standard) or 10 MHz (Pro) for high-frequency testing.

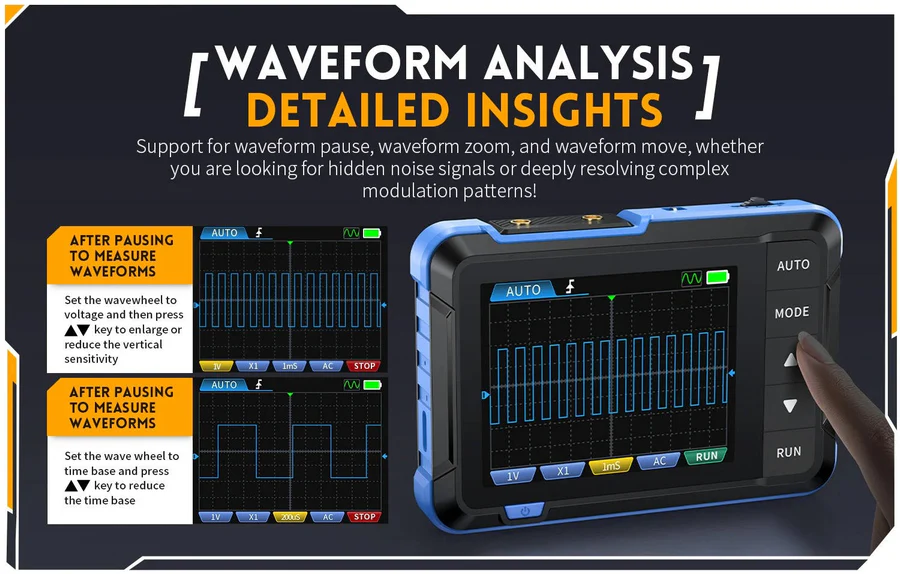

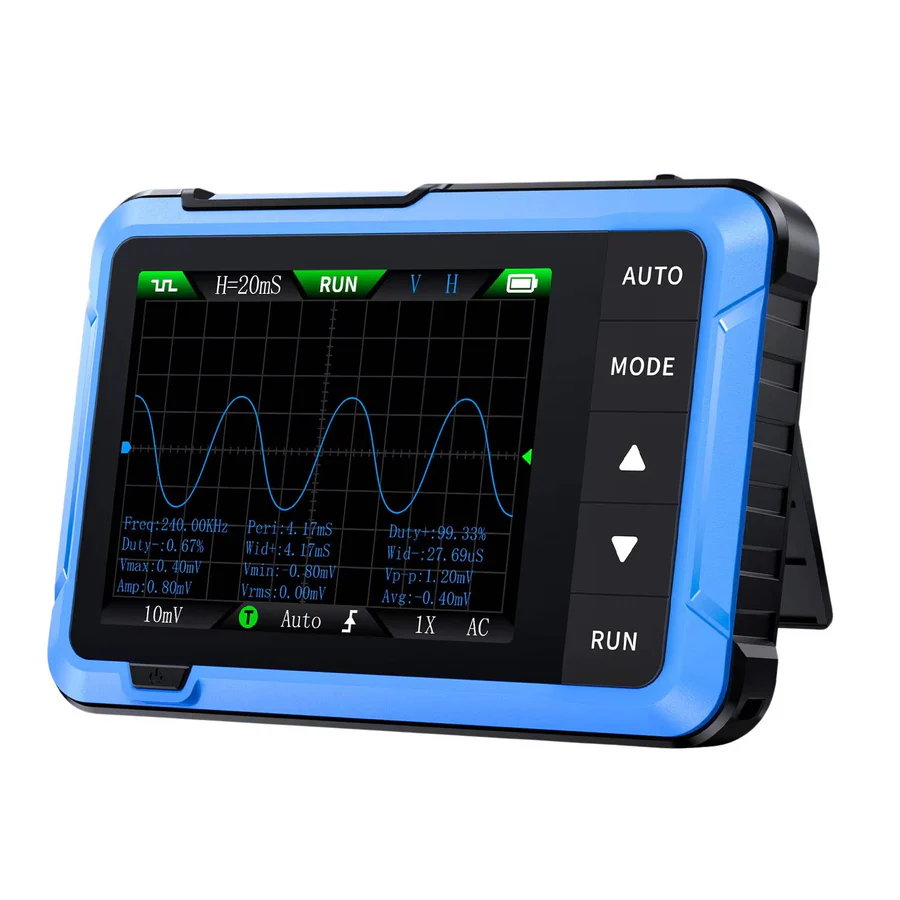

• Instant AUTO Mode: Quickly adjusts and displays waveforms with one click.

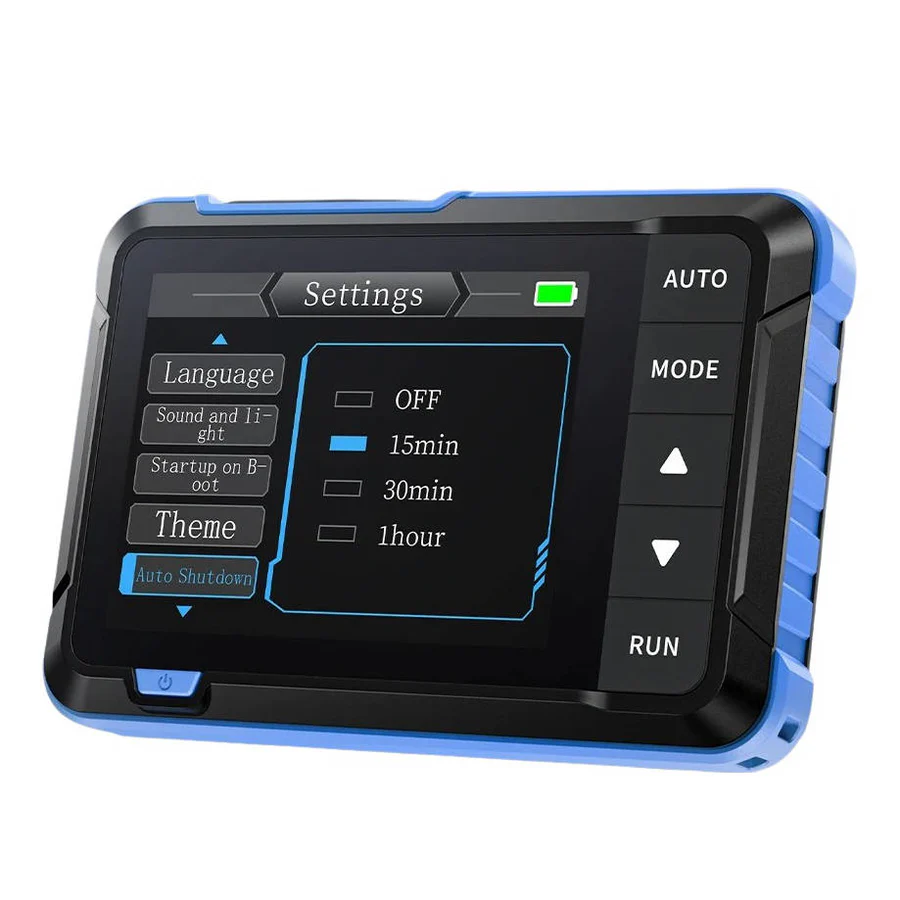

• Clear Display: 2.8-inch LCD screen with 320×240 resolution.

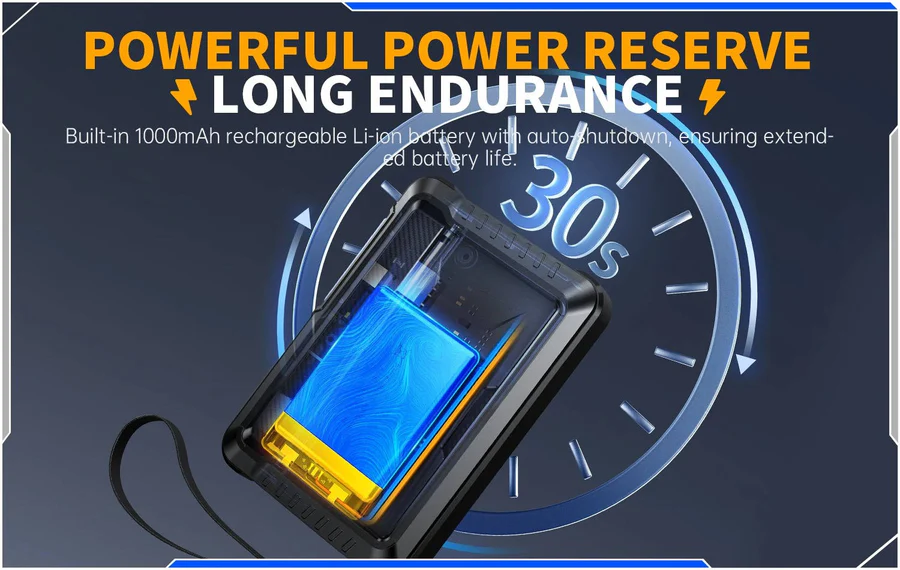

• Extended Battery Life: 1000 mAh lithium battery provides up to 4 hours of use.
• Trigger Modes: Single, Normal, and Auto settings for flexible analysis.
• Built-In Signal Generator: 10 kHz (Standard) or 50 kHz (Pro).

Product Specifications

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Time: Up to 4 hours
• Voltage Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

What’s Included

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What is the difference between the Standard and Pro models?
A: The Standard model offers 5 MS/s sampling with 1 MHz bandwidth, while the Pro version delivers 48 MS/s sampling with 10 MHz bandwidth.

Q: How long does the battery last?
A: The built-in lithium battery supports up to 4 hours of continuous operation.

Q: Can it measure both analog and digital signals?
A: Yes, the oscilloscope supports both analog and digital signal testing.

Q: Is it safe for higher voltage testing?
A: It safely measures up to ±400 V with built-in protective circuits.
